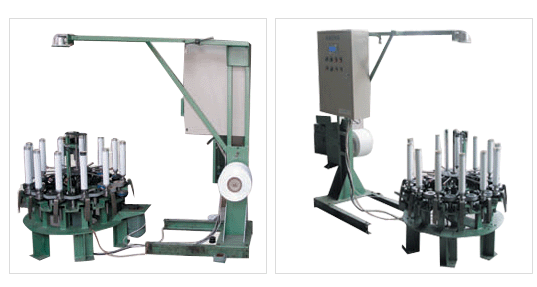

Yarn splitting machine, Split to mono filament from FDY POY
yarn.
分丝机，单丝生产设备
separate monofilament 12 bobbin from one FDY thread. Polyester PP or nylon (PA polyamide)
Yarn
denier: 180D/12F－600D/12F
Monofilament
denier: 15d – 50d
speed: 800m/min
bobbins: 12
bobbin size: Φ50*320(mm)
power: 1.5KW
machine weight: 350KG
machine size: Φ900*1750*1500(m)

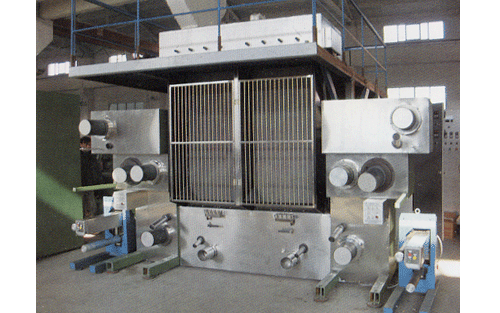

Polyester PP or nylon (PA6 polyamide) FDY yarn spinning
section:
180D/12f—480D/12f
Capacity: 1200 ton/a, 3.6 ton/day(20d)
lower design dwarf FDY machine in one floor
