Aspirators (Suction Guns) for

Man-Made Fiber Productions

I n t r o d u c t i o n

After several years research and on-line trial use. We have

succeeded in making great contribution to all fiber producers

with our super-qualitypowerful suction capacitylow

energy-consumption and wide operation range yarn

aspirators.(suction guns)

The product series are as follows

1, WX001-001

For take up speed less than 6000 m/min

Yarn size max 2500 d

Mainly used in POY production



2, WX001-002

For take up speed less than 7500 m/min

Yarn size max 2500 d

Mainly used in POYFDY production



3, WX001-012

For yarn speed less than 1800 m/min

Total yarn size up to 600 d

Mainly used in DTYDTATY Process



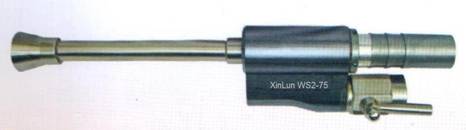

4, WS2-75

For take up speed up to 3000 m/min

Total yarn size up to 75000 d

Mainly used in the take up process of staple fiber



Technical Specification

Type

WX001-001

WX001-002

WX001-012

WS2-75

Designed Operation Pressure (bar)

8 kg/cm2

8 kg/cm2

6 kg/cm2

8 kg/cm2

Pressure Range kg/cm2 (bar)

6-12

6-12

4-10

6-12

Air Consumption (Nm3/min)

5.5 - 12

8 - 17

2 - 4

7 - 15

Suction Tube Length (mm)

200 or 250

230

500

170 or 200

Suction Tube Size (mm i.d.)

7

7

5

10 or 12

Air Outlet (mm o.d.)

30

30

14

32

Air Inlet (mm o.d.)

20

20

12

17

Weight (g)

1000

1250

700

700



We can also supply non-standard suction guns based on

the Specific design request by the customers If you have

any questions please feel free to send a fax to us for more

information.

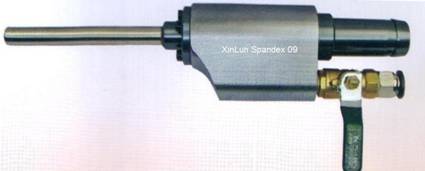

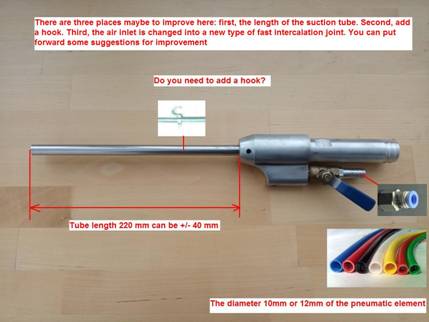

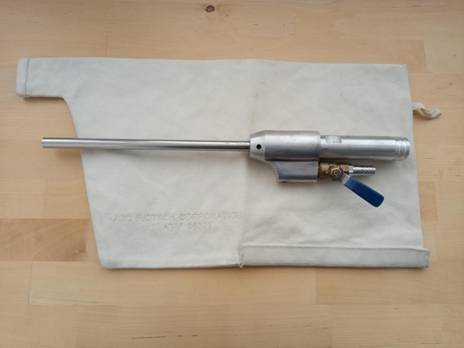

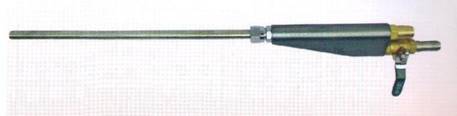

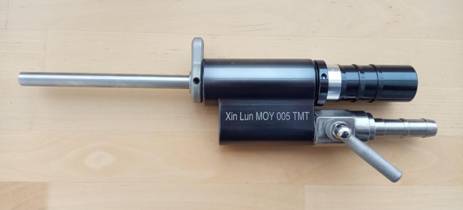

(Pict 1)

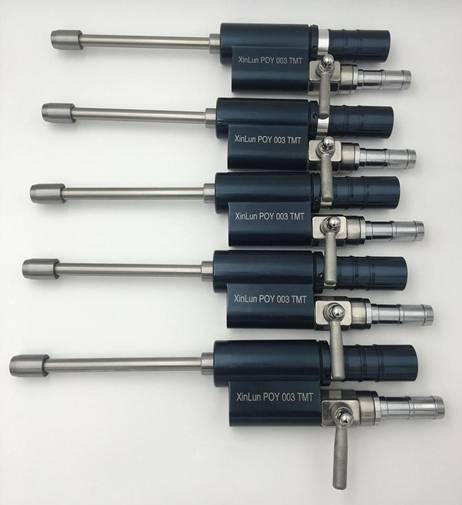

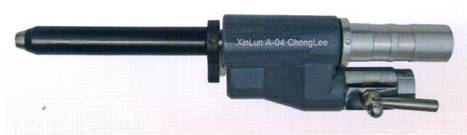

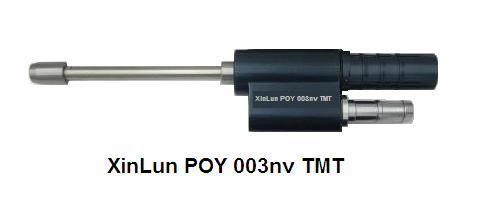

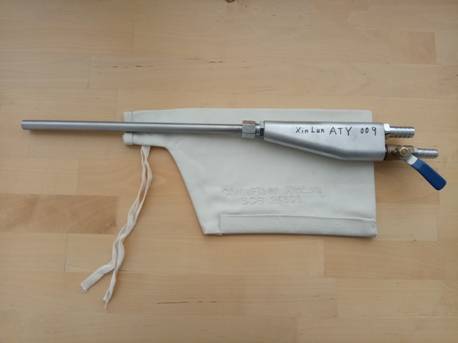

(Pict 2)

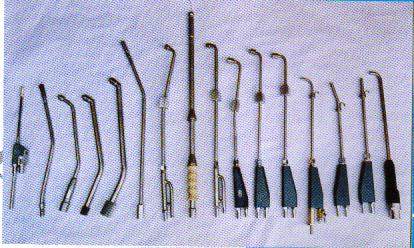

(Pict 3)

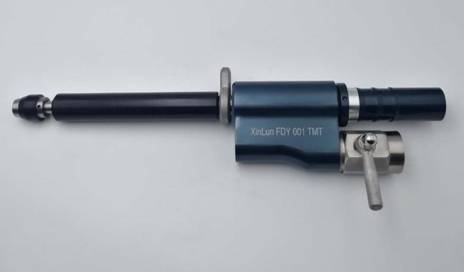

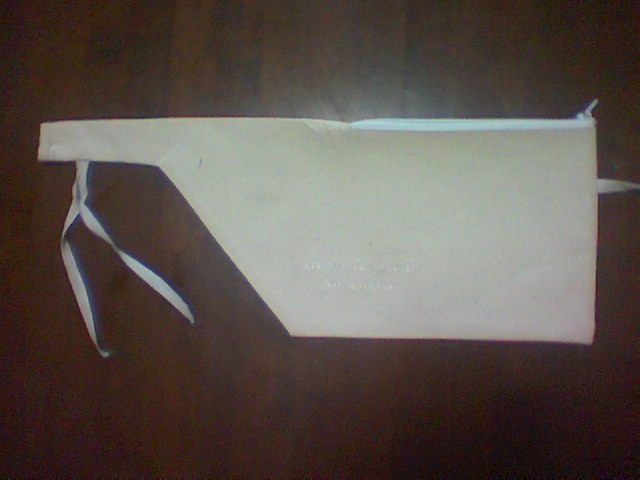

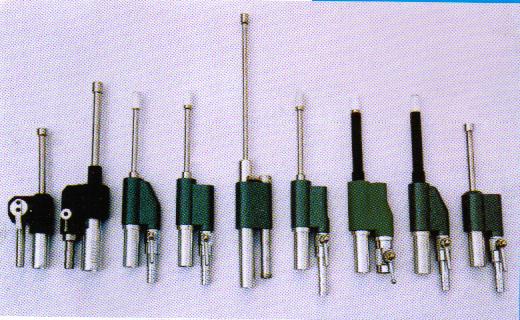

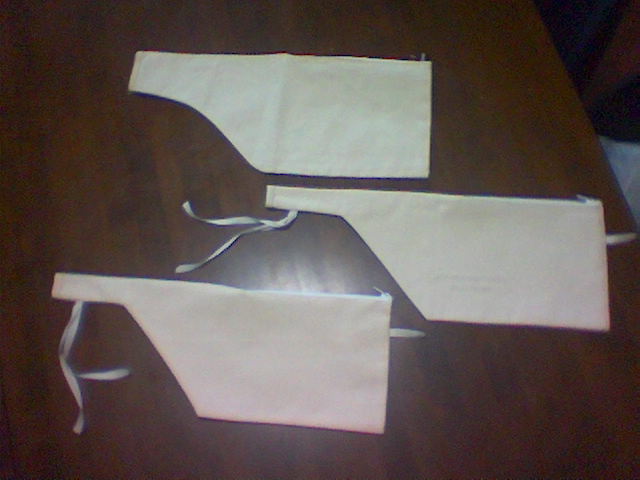

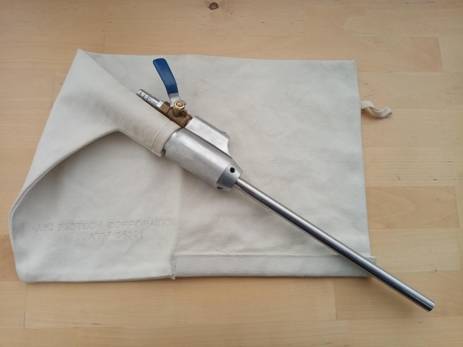

Wasted yarn bags
